  Truck power diesel engine

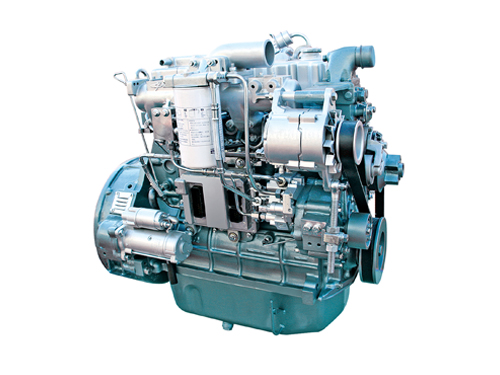

Product Name:YC4E SERIES DIESEL
 Product Details

YC4E SERIES DIESEL

Features & Benefits

Designed and developed based on American technology platform.
● Built upon the proven durability of 6112 series engines, while adding our reliable over 10-year experiences and worldwide technical support.
● One-piece cylinder head–Extend performance life.
● High torque, low-speed performance outperform most of their domestic competitors.
● Intelligent electronic control system-Complete in functionality.
● Spare parts of Euro3 and Euro 4 versions are highly interchangeable, making replacement parts easier to access.
● Point-line meshing gear drive- Give you the best comfort ride with less noise and vibration.


YC4E135-20 YC4E140-20 YC4E160-20 YC4E140-30 YC4E160-30



Techincal Specifications

Engine Model  YC4E140-42 YC4E140-42 YC4E160-42
Configuration Vertical, in-line, 4 stroke, water-cooled, direct injection
Number of Cylinders  4
Bore × Stroke (mm) 110×112
Displacement (L) 4.26
Aspiration Turbocharged, inter-cooled
Rated Power /Speed (kW/r/min) 103/2600 103/2600 118/2600
Peak Torque/Speed (N.m/r/min) 430/1300~1600 500/1300~1600 550/1300~1600
System BOSCH+SCR
Min. fuel consumption with full load (g/kW.h) ≤198
Noise (ISO 3744) dB(A) ≤97
Emissions Euro 4
Dry Weight (kg) 380
Application  4×2 dumper trucks;  4×2/6×2 on-road trucks;


Engine Model  YC4E140-42 YC4E140-42 YC4E160-42
Configuration Vertical, in-line, 4 stroke,    water-cooled, direct injection
Number of Cylinders  4
Bore × Stroke (mm) 110×112
Displacement (L) 4.26
Aspiration Turbocharged, inter-cooled
Rated Power /Speed (kW/r/min) 103/2600 103/2600 118/2600
Peak Torque/Speed (N.m/r/min) 430/1300~1600 500/1300~1600 550/1300~1600
System BOSCH+SCR
Min. fuel consumption with full load (g/kW.h) ≤198
Noise (ISO 3744) dB(A) ≤97
Emissions Euro 4
Dry Weight (kg) 380
Application  4×2 dumper trucks;  4×2/6×2 on-road trucks;
